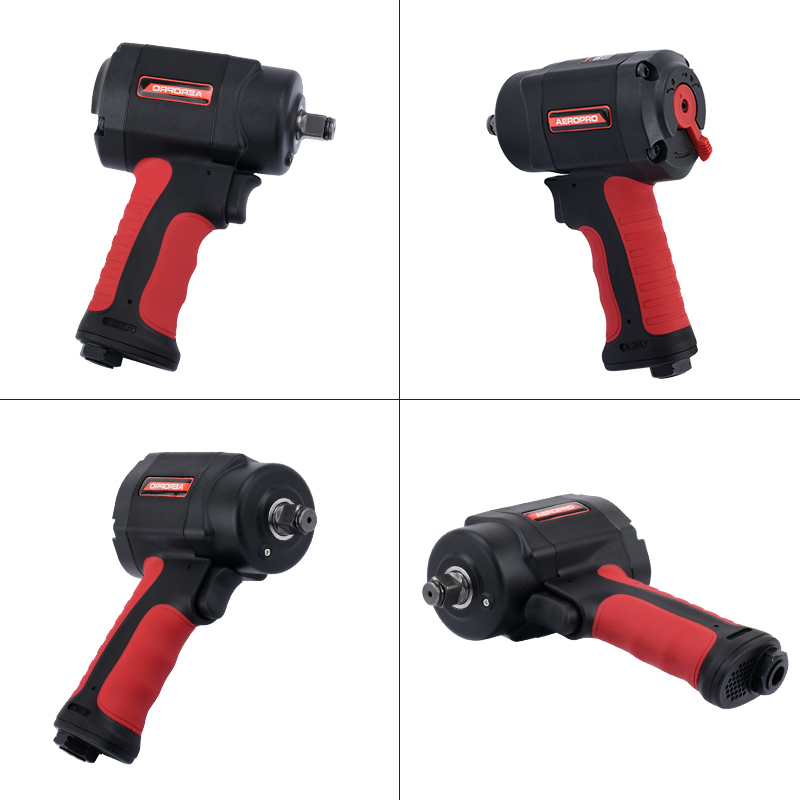

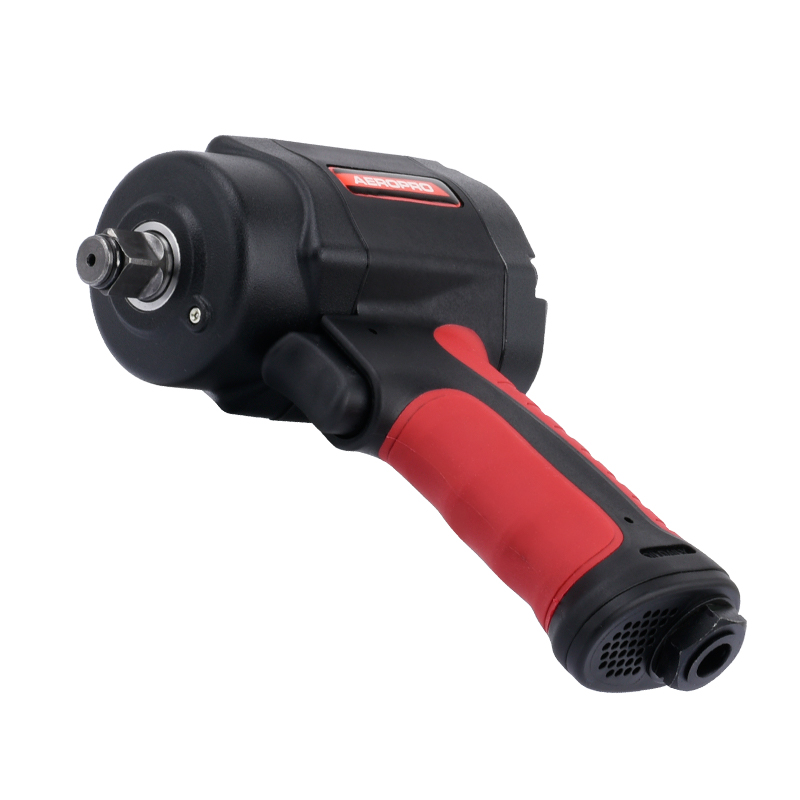

1/2 Inch Mini Impact Wrench AP9515

1/2 Inch Mini Impact Wrench AP9515

contacts us
Product information

  • 1.Impact part, drive shaft, rotor are processed by Ipsen heat treatment equipment which we imported from Germany, ensuring a more durable wear, greatly extend the lifetime;

    2.Aluminum die-casting gun body,  good air tightness.

    3.POM blade and industrial P6 bearings,extend the lifetime;

    4.High quality oiling bushing effectively extend the lifetime of anvil;

    5.Could passed drop testing by 1 meter high;

    6.3-5 seconds to achieve the maximum torque;

    7.25 million screw life


Features/ benefits:


·Smart design only 112mm length,better for narrow space operation.

·Jumbo hammer impact design,high working torque.

·Rear air exhaust,clear and low noise.

·Ergonomic handle design, feels good,easy operation.

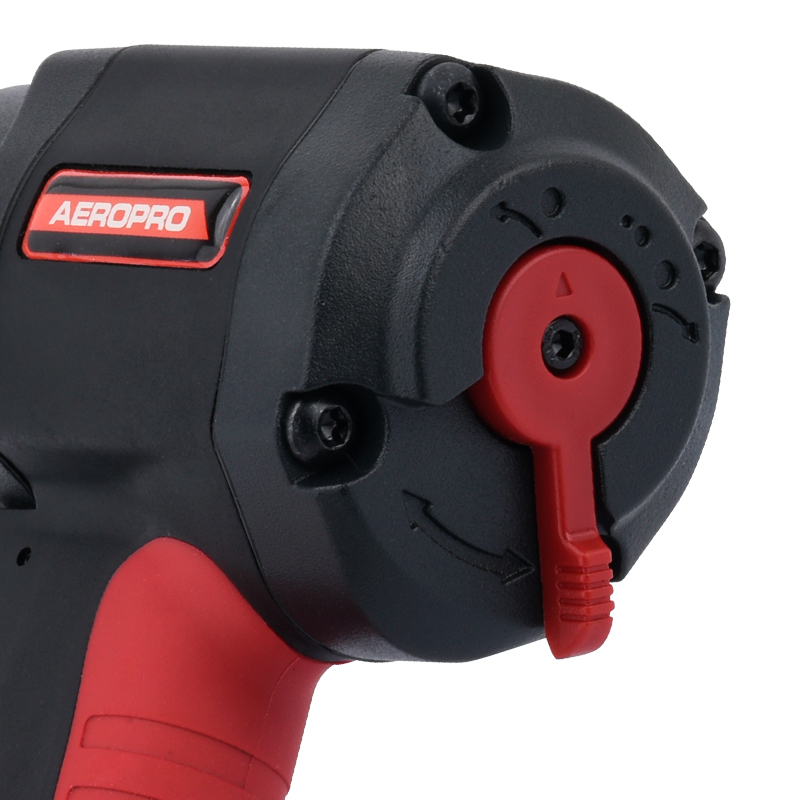

·Adjustable power suitable to different application.

·Bolt size:10-16mm



Technical Parameters :


Model No:AP9515

Square Drive:1/2"

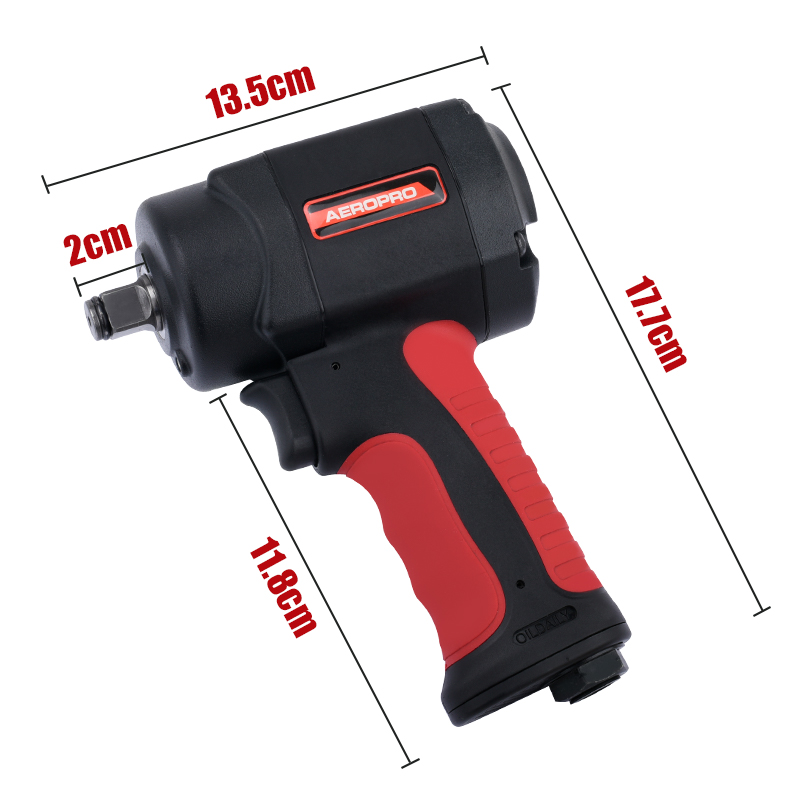

Size:134x64x179mm

Free Speed Rpm:8500

Max torque:450ft-lb (610N.m)

Air Inlet(NPT):1/2"

Air Hose(ID):3/8"

Avg Air Consumption:5cfm(142.5L/min)

Sug.air Comp: 3HP

Net Weight:2.64Lbs(1.2kg)

Working Pressure:90PSI
